Function of the whole machine

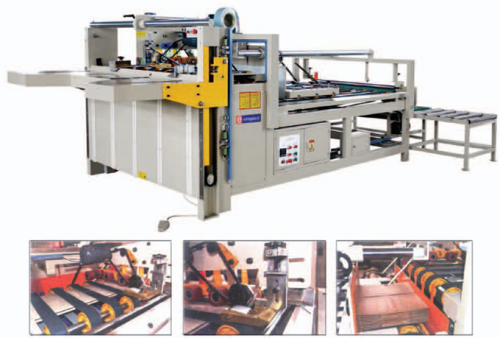

◆BZX2800 Type semi-auto gluer compose of main form and two small conveyer.
◆Main form including form,up and down working table.forepar feeding section,forepart proofread section,middle transportation section.midle press section,side carton delivery section,electric control system.
◆The machine adopts name brand import electric spare parts,Siemens electic,OMROPN photoelectricity switch,Japan TOKY counter,Taiwan meanwell lectric power Supply.Gluer head adopt special lly materalantiacid-base to keeping the gluer head for long ife.Main motors adopts Taiwan Chengbond motor.
Features and purpose
◆This machine suit for folding and gluing allthe kind of paperboard.Easy operation,no trainingis necessay.One minute quick order change.Carton glue min sze is 260mm.It is the best choice for carton making factory.
Technological parameter):
|
参数、规格 |
Parameter、Specification |
2800 |
|

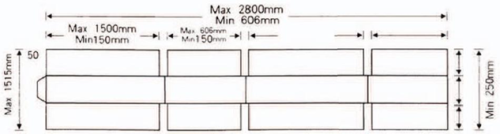

最大尺寸(长+宽)×2 |
Max.size(L+W)×2 |
2800mm |
|
最小尺寸(长+宽)×2 |
Min.size(L+W)×2 |
600mm |
|
最大尺寸(宽+高)×2 |
Max.size(W+H)×2 |
1515mm |
|
最小尺寸(宽+高)×2 |
Min.size(W+H)×2 |
260mm |
|
送纸高度 |
High of feeder |
900mm |
|
电机功率 |
Use Power |
3kw |
|
机械长度 |
Machinery length |
5300mm |
|
机械重量 |
Machinery weight |
2150kg |
|
机械速度 |
Machinery speed |
60m/min |
