Performance        characteristics

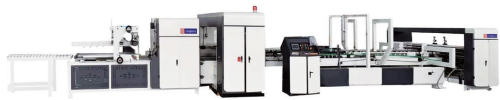

It is composed of five parts:paper feeding part,folding part,nailing part,sticking part and counting and stacking output part.Frequency conversion speed regulation,simple and reliable operation.Automatic paper feeding,automatic folding,automatic corection,automatic gluing,automatic nail box, automatic counting.Frequency control,touch screen input data,the average speed of nailbox 40-60 pieces/minute.t can effectively overcome the phenomenon of scissors and fishtail marks in the process of traditional nallbox and ensure the precision and quality of nail box and glue box.Gratly savelabor and improve work efficiency

Feeding part Glue-coated folding part

◆Adopting the front edge of the belt to suck the paper, which is accurate and reliable;

◆Adopting high-end electromagnetic clutch and electromagnetic brake system, the paper feeding part can be controlled separately, and the operation is simple and reliable;

◆The height of the paper pressing wheel is adjustable, suitable for the thickness of the cardboard is 2-8mm;

◆Linked with the folding part, variable frequency speed regulation, paper feeding speed 0-180m/min;

◆The front baffle and belt are adjustable left and right;

◆The single board on both sides is electrically adjusted and pneumatically aligned. ◆The main motor adopts variable frequency speed regulation system without noise, and the speed regulation is flexible and stable;

◆Adopting imported high-friction belt to transport cardboard and automatically feed paper;

◆Adopting stainless steel wheel to apply glue, the glue amount is uniform, no trouble and save glue;

◆The folding part is equipped with a cardboard correction device and an indentation correction device, and the two rows are adjusted inside;

◆Side positioning guide wheel system, high forming degree, folding speed 0-180m/min.

Nailing part

◆One-touch adjustment of box cover, box height, number of nails and number of bundles. One-touch adjustment is simple and fast;

◆The baffle adopts a connecting rod mechanism, and the connecting rod is made of special material, which is tough and not easy to break;

◆Independent conveying platform, the cardboard does not pass through the machine head when gluing the box, and the speed is faster;

◆The side shift function effectively adjusts the position of the nails;

◆Can nail boxes without cover and bottom (please explain before ordering);

◆Nail distance 30-120 can be adjusted arbitrarily;

◆Can nail single nail/double nail/reinforced nail at one time, which can meet the different requirements of different customers for nail types. Counting and stacking part

◆Automatic stacking and neat output;

◆The main motor frequency conversion speed regulation, stable and reliable startup;

◆Use belt to convey cartons, stack neatly, speed 0-180m/min;

◆The slapping device has a deviation correction function, and the deviation is very small;

◆Counting and pushing are pneumatic, PLC electronic control, reliable and fast;

◆The output part adopts the synchronous pressing method of the bottom conveyor belt and the upper non-pressing belt,

◆Make the finished cartons firmly adhered and neatly output without misalignment.
