Feature and Purpose
|

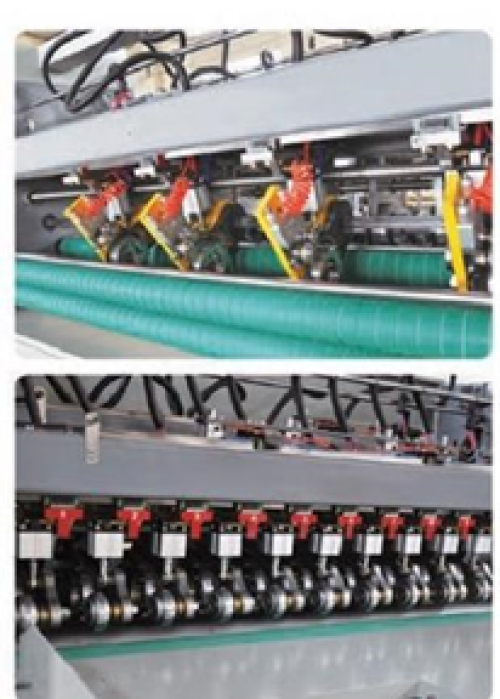

◆Input order by touch screen. ◆Input allthe order for per shif in once,befor working.Save the time of work efficiency. ◆Save the change order time,improve production accuracy ◆Applicable to the users,the number of order less and many types of order. ◆Whole machinery servo,PLC control,quickly input order and change order,positioning accurately,humanized interface,easy operation. ◆Pneumatic up and down the blade and scorer,Auto and manual two methods of grinding knife,high degree of automation,save labor and time. ◆Electric elements adopts international famous brand,stable and reliable performance. ◆Slitting blade adopts tungsten alloy blade,long working life,the slitting edge is neat,no press mark,no burr. ◆Creaser include pre-creaser and fine-creser,no Seam Broken,easy to bend,Forming beautiful creasing line. ◆Transmission adopts imported synchronous belt,steady,low noise. ◆Machine positioning adopts linear guideway and ballscrew structure,high Precision. ◆Change order time²0-30s. |
Technological parameter):
|
型号 |
Model |
2500 |
2800 |
3100 |
|
最大分切 |
Max.sitting width |
2200mm |
2500mm |
2800mm |
|
最小分切 |
Min.slitting width |
140mm |
140mm |
140mm |
|
最小压线宽度 |
Min.scoring width |
140mm |
140mm |
140mm |
|
重量 |
Weight |
3500kg |
3800kg |
4000kg |
|
整机功率 |
nstall power |
12kw |
12kw |
12kw |
|
运行功率 |
Running power |
9kw |
9kw |
9kw |
|
换单时间 |
Change order time |
20-30s |
20-30s |
30-40s |
|
订单储存 |
Qty of order storage |
9999 |
9999 |
9999 |
|
机械速度 |
Max.speed |
200m/min |
200m/min |
200m/min |
|
刀片规格 |
Blade |
φ200×122×1.2(mm) |
||
|
压线轮直径 |
Diameter of scoring wheel |
156mm |
156mm |
156mm |
|
工作气压 |
Working pressure |
0.6-0.8Mpa |
0.6-0.8Mpa |
0.6-0.8Mpa |
|
外形尺寸 (宽均不包括工作台) |
Machine dimension(mm) (Dont include workbench) |
3700×1350×2050 |
4000×1350×2050 |
4300×1350×2050 |
|
分切压线配套型式 |
Blade &scoring composed type |
5刀8线6刀10线 |
5刀8线6刀10线 |
5刀8线6刀10线 |
